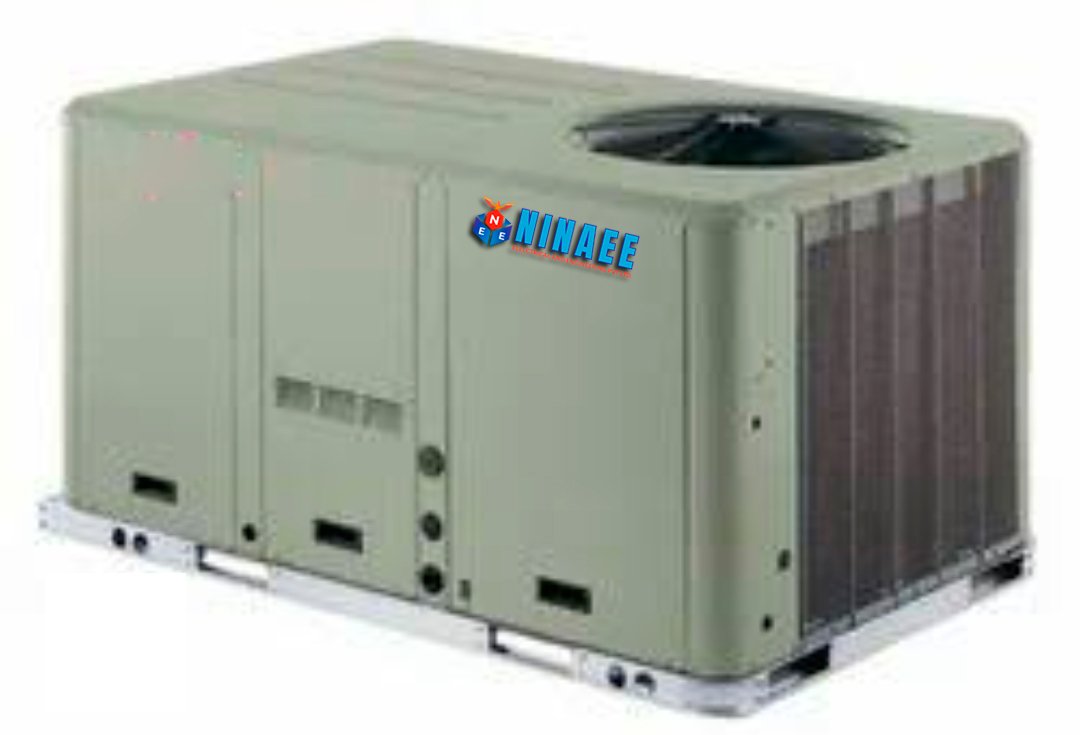

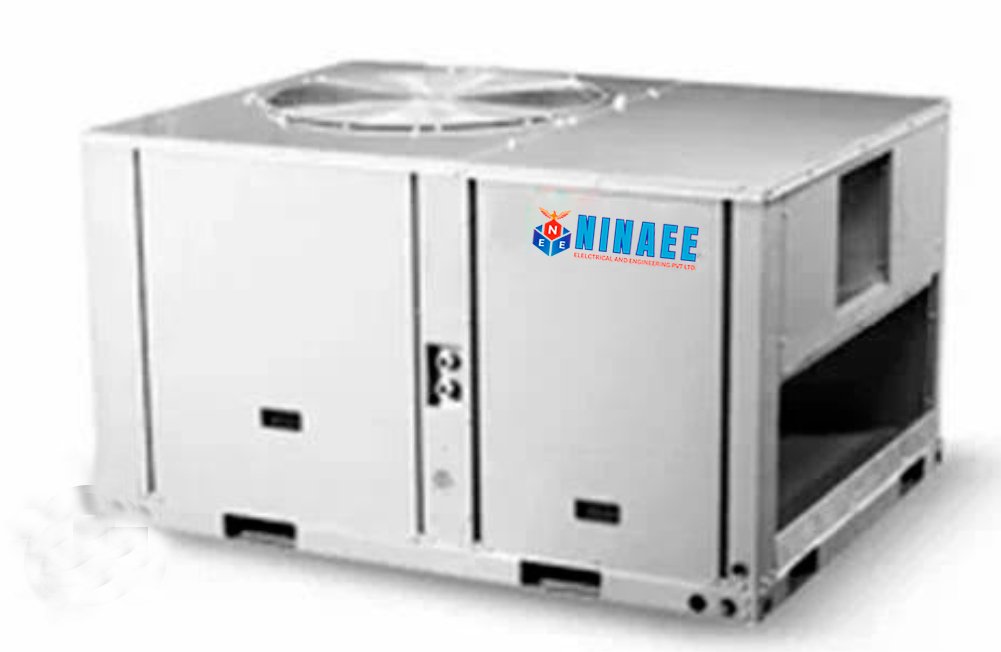

A Rooftop Package Unit (RTU) is a self-contained HVAC system placed on the roof of a commercial or industrial building. It contains all major components (cooling, heating, and air handling) inside a single unit — hence the name “package.”
Main Components of Rooftop Package Unit
-
Compressor
-
Compresses refrigerant to circulate and remove heat from indoor air.
-
-
Evaporator Coil
-
Cools the air as the refrigerant absorbs heat from the return air.
-
-
Condenser Coil
-
Releases absorbed heat to the outside air via fans.
-
-
Air Filter
-
Removes dust and pollutants from incoming air.
-
-
Blower Fan (Supply Fan)
-
Pushes conditioned air into the building’s duct system.
-
-
Heating Section
-
Can be electric, gas-fired, or heat pump-based.
-
-
Mixing Box (optional)
-
Mixes return air with fresh outdoor air (for ventilation).
-
-
Economizer (optional)
-
Uses cool outdoor air to reduce the load on compressors.
-
Working Principle
-
Warm air from the building is drawn into the RTU.
-
The air passes through filters and is cooled (or heated) using refrigerant or gas/electric heating.
-
The conditioned air is pushed back into the building via ductwork.
-
Heat is rejected through the condenser fan to the outside environment.
Common Applications
-
Shopping Malls
-
Office Buildings
-
Restaurants
-
Theaters
-
Schools
